precision Custom Aluminum Casting Parts Manufacturer
The molds we design minimize scrap and maintain a tolerance of ±0.05 mm. We specialize in complex geometries and thin aluminum parts. With our end-to-end in-house control.
99.6%
Inspection Pass Rate
26
Years of Experience
ISO
ISO 9001:2015 Certified
100%
In-House Control
One Stop Custom Aluminum Casting Parts Suppiler
Our custom aluminum castings are designed to meet the demanding requirements of a wide range of applications worldwide and are subject to third-party inspection.
High-Quality Aluminum Alloy Gravity Cast Hardware Shell Parts
Aluminium Metal Cast Pump and Valve Components
Aluminum Gravity Casting for Automotive
Precision Die Casting Aluminum Hook for Washing-Machine
Precise Casting Services Vehicle Parts
Customized Casting Solution Processing Aluminum Alloy Home Washing Machine Components
Custom Aluminum Die Casting Parts for Motorcycle
Complex Geometric Aluminum Die Castings
Electronic Box Casing Custom Aluminum Die Casting
Auto Engine Body Part Aluminum Die
Aluminium Motor Housing Casting
Aluminum Alloy Die-Cast Automotive Parts
Industries that use aluminum castings
FERR specializes in providing precision-machined aluminum components for industries with demanding requirements, incorporating lightweight design and exceptional durability into our products.
Automotive
We supply high-precision engine components, electric vehicle motor housings, and structural parts, all of which meet stringent automotive safety standards.
Industrial & Fluid Control
Our valve bodies, pump housings, and fittings are engineered for high-pressure, harsh environments, delivering zero-leak performance and exceptional corrosion resistance.

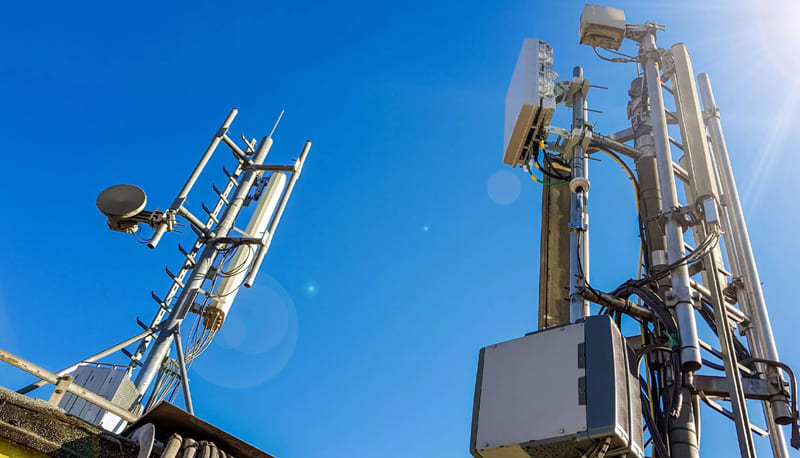

Telecom & Power
The complex housings and heat sinks we manufacture offer excellent thermal conductivity and weather resistance, making them ideal for outdoor telecommunications and power grid infrastructure.
In-House Machining for OEM aluminum Casting Parts
Every aluminum casting component we produce is machined, drilled, tapped and cleaned in-house. Products leaving our factory are dimensionally accurate and ready for immediate use on your assembly line.
Tapping Workshop
Auto Cleaning Line
Cutting
Drill Hole
Punching Machine
Bending Machine
Laser-Beam Welding Machine
Milling Machine
Spray Sand Machine
Ultrasonic Cleaners
Tapping Machine
CNC Engraving Machine
NDT Inspection for Cast aluminum Parts
Every aluminum casting part is inspected before shipment — surface porosity, cold shuts, shrinkage defects, and dimensional deviations are all caught in-house, so defective parts never reach your production line.
X-RAY
Reveals internal shrinkage cavities, porosity clusters, and misruns inside complex aluminum casting geometries that surface inspection cannot reach.
Ultrasonic Testing
Measures wall thickness and detects subsurface voids or inclusions in large or heavy-section aluminum casting parts — non-destructively, leaving the part fully intact.
Advantages Of Our Aluminum Casting Parts
Drawing on our extensive manufacturing experience, we offer aluminum castings with higher density, a more compact structure, and lower internal porosity.
Secondary Operations and Treatment of Custom Aluminum Casting Parts We Offer
Our Aluminum Casting Services
FERR offers comprehensive aluminum casting solutions—we tailor our services to your specific part geometry, production volume, and alloy requirements.
Capability
Description
Material Options
A380, ADC12, A360, A413, A356, plus custom aluminum alloys; zinc alloy also available
Minimum Wall Thickness
Down to 1.0–1.5 mm (depending on part geometry and alloy)
Maximum Casting Size
Up to 700×550 mm for large cold‑chamber machines (supporting 88T–2000T equipment)
Weight Range
From 30 g small housings to 8–10 kg structural castings
Surface Finish
Raw as-cast, shot-blasting, tumbling, polishing, machining, powder coating, anodizing (select alloys)
Manufacturing Features
Integrated ribs • Insert casting (steel parts / brass threads) • Thin-wall sections • High-complexity geometry • Automated trimming & deburring
Our Aluminum Casting Manufacturing Approach
We combine degassed aluminum, gravity-controlled solidification, and precision post-processing into one integrated workflow — so parts arrive dimensionally accurate, structurally sound, and ready to install.
Engineering Design & Pattern Setup
Our engineers optimize the casting geometry using Sand Casting or Permanent Mold technologies. We focus on critical factors such as directional solidification, shrinkage allowance, and riser placement. Before pouring, premium aluminum ingots (e.g., A356, A319) are refined and degassed to eliminate hydrogen and impurities, ensuring a clean, stable melt.
Controlled Gravity Casting Process
Unlike high-pressure methods, our Gravity/Sand Casting process relies on controlled metal flow to minimize turbulence and air entrapment. By monitoring pouring temperatures and cooling rates, we ensure a fine grain structure. This process is ideal for producing heavy-duty power fittings and components with thick cross-sections that require maximum mechanical strength.
T6 Heat Treatment & Precision Machining
Post-casting, parts undergo T6 Heat Treatment (Solution & Aging) to significantly enhance tensile strength and hardness—a critical advantage of gravity casting. After removing runners and risers, tolerance-sensitive areas are processed in our high-speed CNC centers to meet exact specifications, ensuring an "easy-to-install" experience.
Our supported aluminum casting process
| Feature / Process | High‑Pressure Die Casting | Sand Casting | Investment Casting |
|---|---|---|---|
| Typical Volume | Medium to high (1,000+ parts) | Low to medium (1–10,000 parts) | Low to medium (100–10,000 parts) |
| Part Size Range | Small to medium (up to ~10 kg) | Small to very large (up to 100+ kg) | Very small to medium (up to ~50 kg) |
| Minimum Wall Thickness | 1.0 – 1.5 mm | 3 – 4 mm (depending on design) | 0.75 – 1.5 mm |
| Dimensional Tolerance | High (±0.05 mm typical) | Moderate (±0.5 mm typical) | High (±0.1 mm typical) |
| Surface Finish | Very smooth (as‑cast) | Rough (requires finishing) | Excellent (as-cast, Ra 1.6–3.2 μm) |
| Tooling Cost | High (steel mold) | Low (wood/plastic pattern) | Medium to high (wax pattern die) |
| Lead Time (Tooling) | 4–8 weeks | 1–3 weeks | 4–8 weeks |
| Typical Applications | Automotive housings, electronics frames, structural brackets, thin‑wall components | Large pump bodies, machine bases, prototype parts, and low‑volume custom castings | Turbine blades, medical implants, jewelry, complex aerospace & defense components |
| Secondary Operations | Minimal (trimming, light machining) | Often required (machining, heat treat) | Minimal (light machining if needed) |
Prototypes and Parts Made Easy
1
Provide 3d drawings
Send us your initial concept or idea, and our expert team will craft precise 3D drawings to bring your vision to life.
2
Evaluate the quotation
Once we receive your drawings, we will evaluate the specifications and provide you with a competitive
3
Manufacturing
Upon approval, we begin the manufacturing process using advanced techniques and high-quality materials
4
Order delivery
Once your product is ready, we’ll coordinate a timely delivery that suits your schedule
Let's get started
- Get 3-day standard lead times on simple parts between 10 mm x 10 mm and 200 mm x 200 mm. Upload your part to see if it’s eligible.
FAQ
We specialize in delivering fully finished aluminum castings ready for immediate assembly. Drawing on 20 years of expertise in custom metal components, we offer end-to-end solutions. This goes beyond basic casting to include high-precision CNC machining, stringent surface treatments (such as anodizing or corrosion-resistant coatings), and rigorous final inspections. The valve bodies, industrial fittings, or enclosures you receive from us can go straight onto your production line.
We adhere to rigorous craftsmanship standards and a comprehensive quality control system. From spectral analysis of raw materials to X-ray non-destructive testing (NDT) for porosity, and precision coordinate measuring machine (CMM) inspections, we ensure that every casting meets your most stringent tolerance requirements and is free of defects.
Absolutely. Whether it’s the high corrosion resistance required for industrial piping systems, the exceptional thermal conductivity needed for telecommunications heat sinks, or the high strength-to-weight ratio required for structural components, we can precisely match and cast the specific aluminum alloy grade you need.
Typically, mold design and approval of the first article sample (FAS) take 3 to 5 weeks, depending on the casting’s complexity.
Let’s talk about your next project !
Whether you have detailed drawings or just a concept, we’re ready to listen.
I don't have complete drawings, can I send inquiry?
Yes, we can help you analyze based on your description, samples and photos.
I am not sure if you can do my parts?
Most of our customers come to us because “others say they can’t do it”.
Are you a factory or a trader?
We are a factory and have a project management team that can handle the technology, cost and delivery at the same time.
