One-Stop OEM/ODM Stainless Steel Casting Parts manufacturers
High-Quality Stainless Steel Casting Parts
Start A New Quote
Start to Upload Your FilesSTEP STP SLDPRT IPT PRT SAT IGES IGS CATPART X_T OBJ STL files
Focus on Stainless Steel Casting products
Our Stainless Steel Casting Parts Are Engineered to Meet the Demanding Requirements of Applications Worldwide. to discuss your project requirements. Get in touch to discuss your project

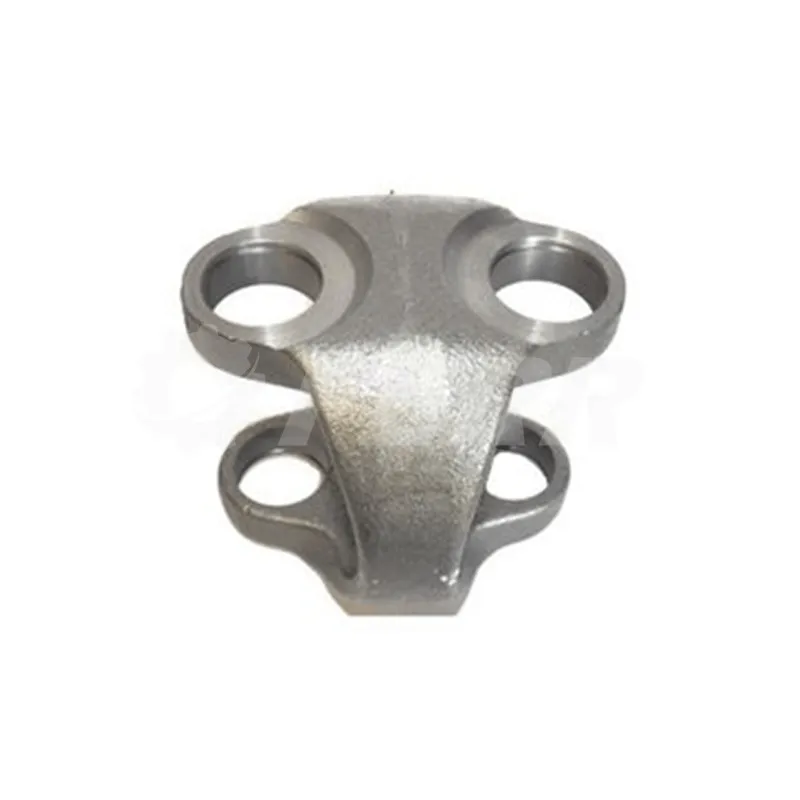

Stainless Steel Yoke Castings

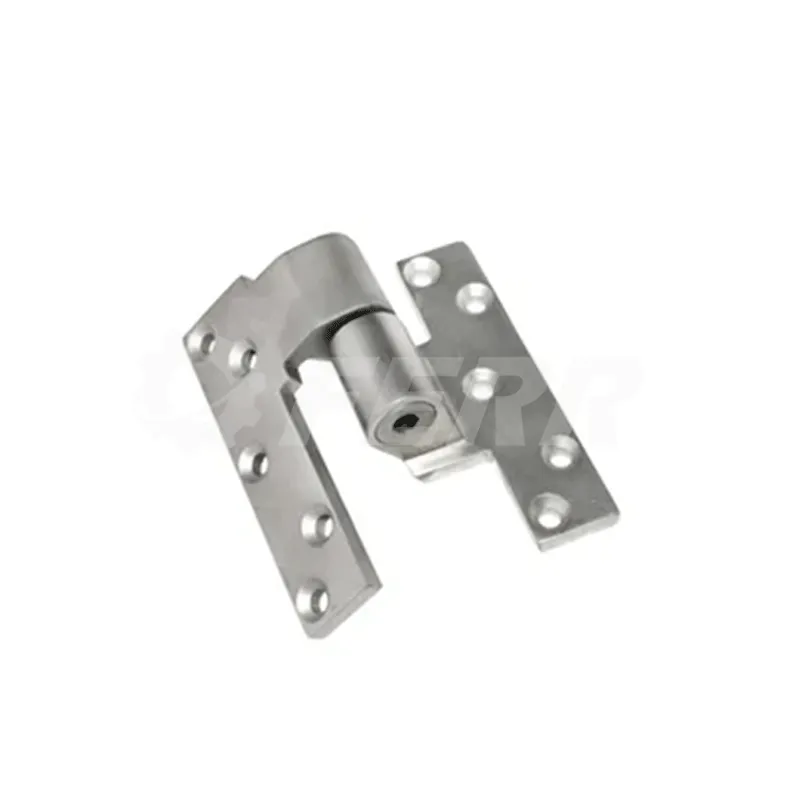

Stainless Steel Pivot Hinge Castings
Stainless Steel Casting Bearing Support Bracket

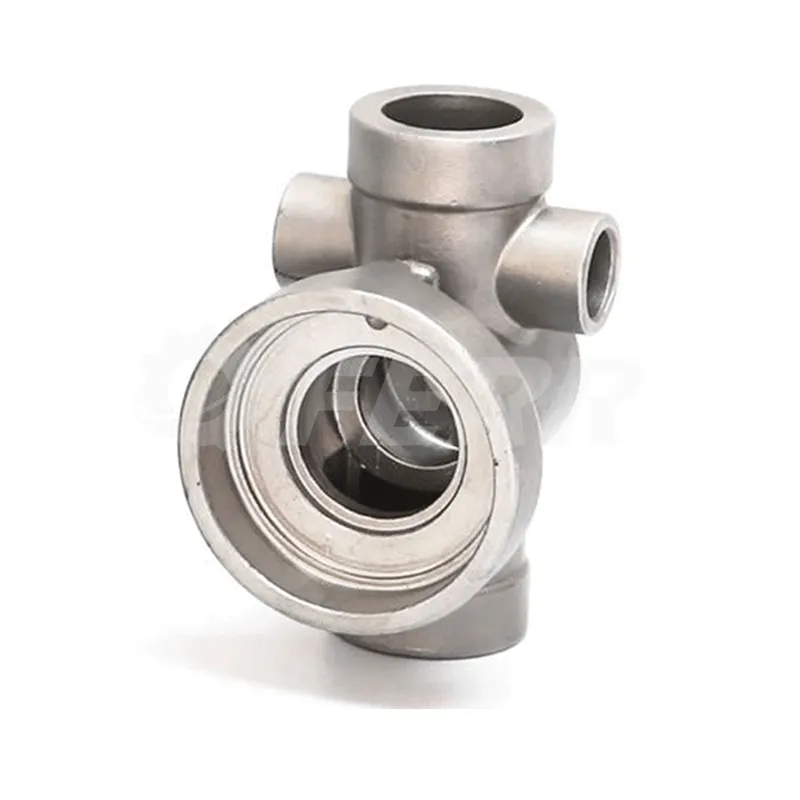

Stainless Steel Casting Valve Body

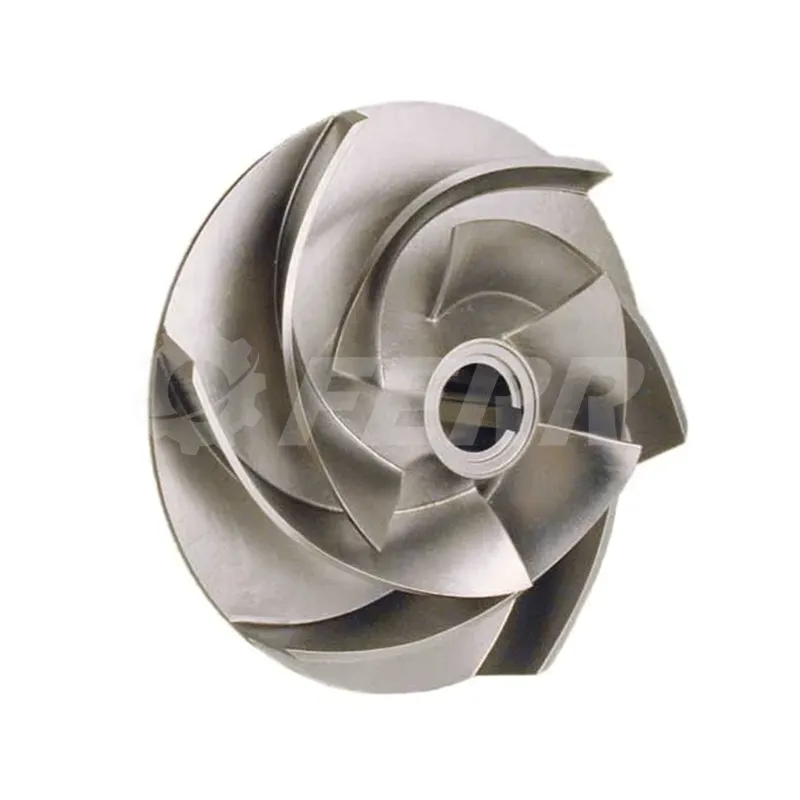

Pump Impeller Stainless Steel Stainless Casting Parts

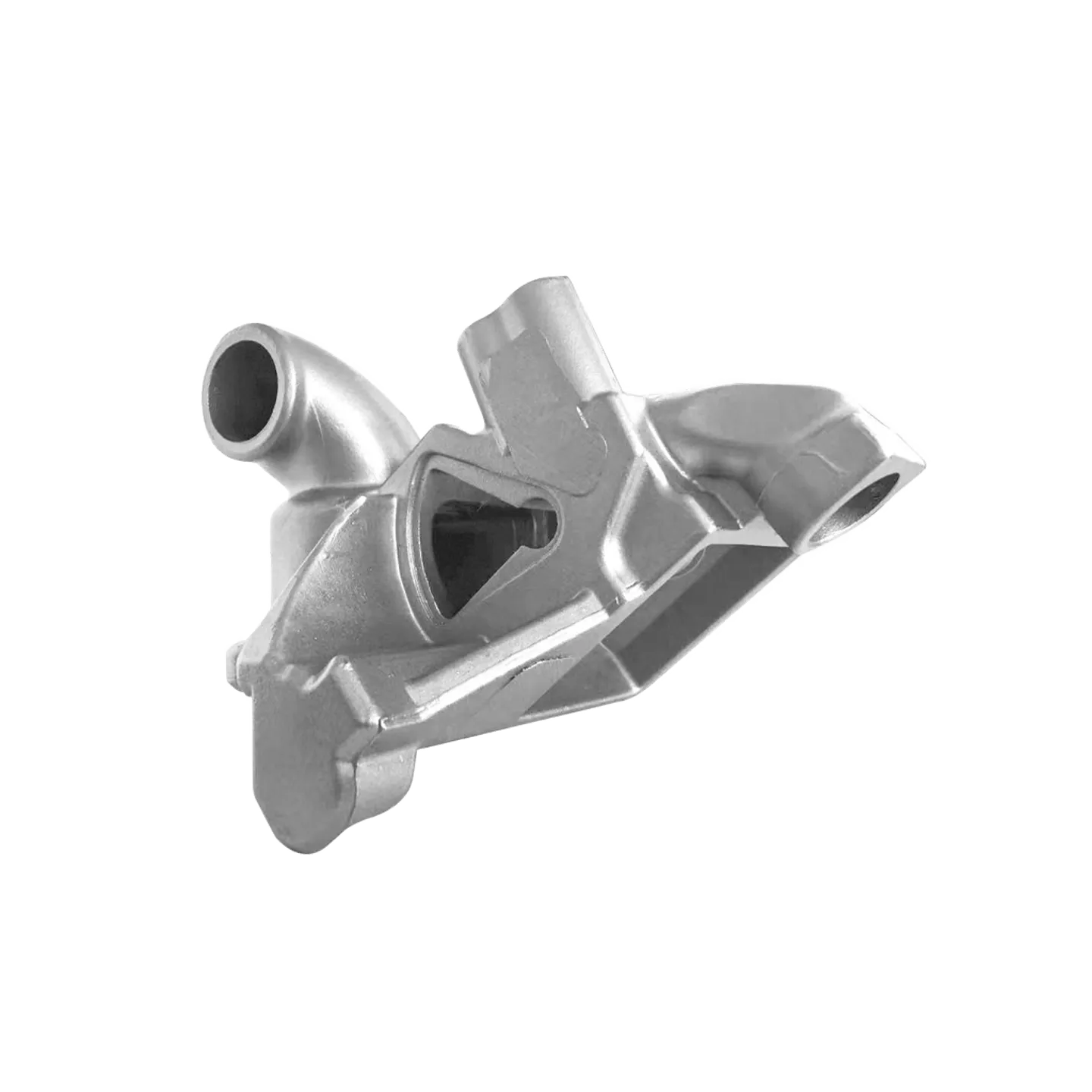

Custom Stainless Steel Complex Geometry Bracket

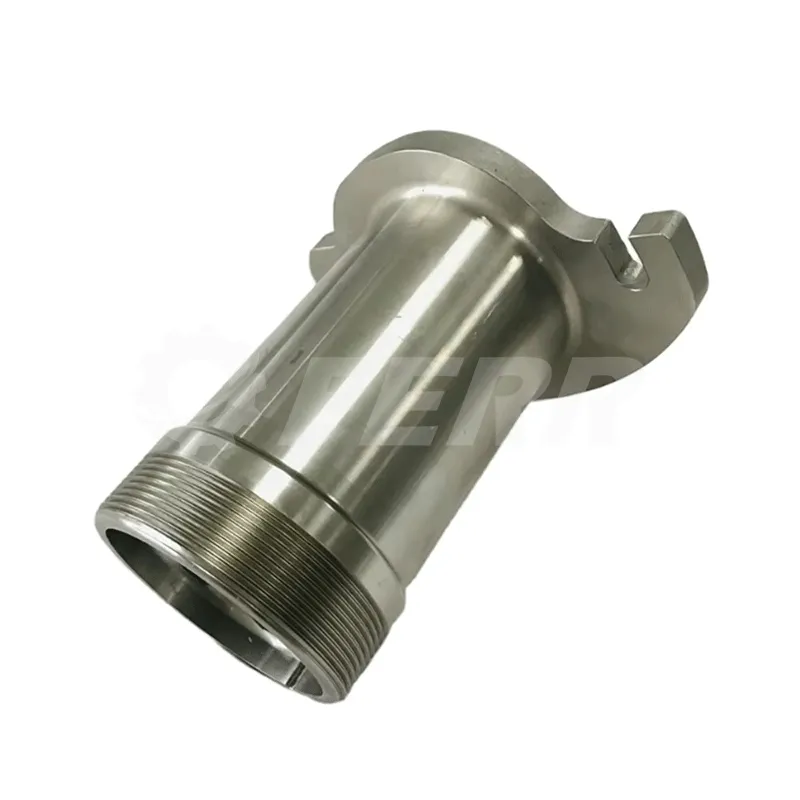

High Quality Stainless Steel Casting Meat Grinder Accessories

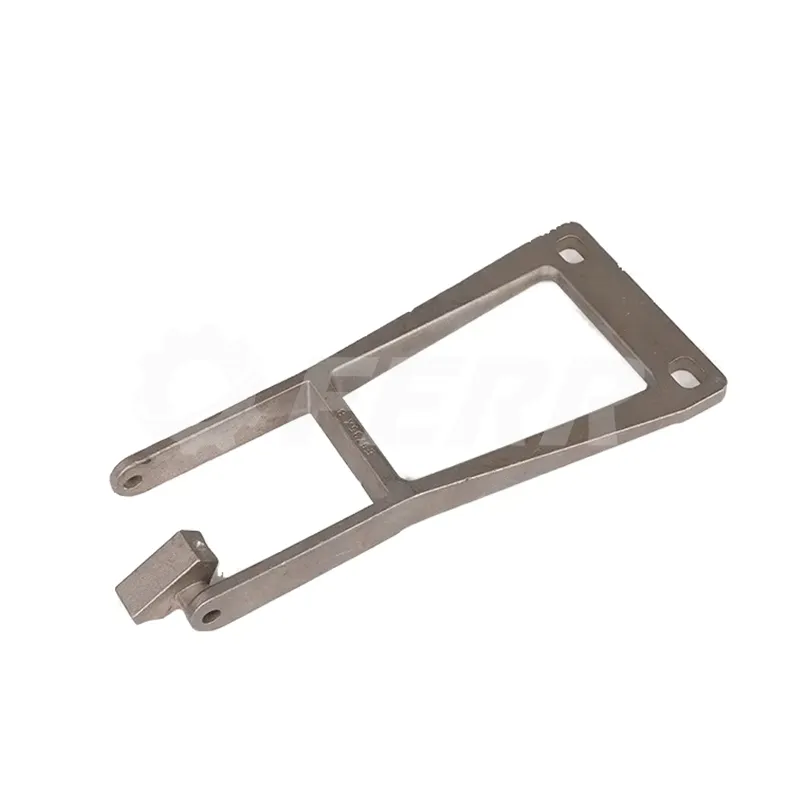

Stainless Steel Casting Foot Pedal Bracket
I don't have complete drawings, can I send inquiry?
Yes, we can help you analyze based on your description, samples and photos.
I am not sure if you can do my parts?
Most of our customers come to us because “others say they can’t do it”.
Are you a factory or a trader?
We are a factory and have a project management team that can handle the technology, cost and delivery at the same time.
Our Expertise of Stainless Steel Casting
We possess mature engineering capabilities in stainless steel casting, enabling the stable mass production of various industrial components that feature thin walls, complex runners, and high load-bearing requirements.
Leveraging precision investment casting, vacuum pouring, and flow/solidification simulation technologies, we consistently deliver customized stainless steel assemblies to industries including automotive, food processing, machinery, medical devices, energy, and chemicals. Dimensions range from 0.1 to 24 inches, with weights spanning 1 ounce to 50 pounds. ensuring each batch delivers high density, dimensional consistency, and corrosion resistance.
Our Manufacturing Approach
To ensure consistent casting quality, we've broken down “control” into tangible data and processes: material batch traceability, comprehensive casting parameter logging, pre-production simulation validation, and digital verification for every batch inspection—replacing reliance on master craftsmen's intuition.
Alloy Composition and Melting Control
We perform spectral analysis on standard materials such as 304, 316, and 17-4PH, making real-time adjustments to chemical composition to prevent corrosion resistance and hardness instability caused by fluctuations in Cr and Mo content.
Engineering Design of Mold and Gate Systems
The pouring system undergoes software simulation (flow and solidification) to minimize defects like shrinkage cavities, cold shuts, and slag inclusions. Gate placement and riser shrinkage compensation paths are designed based on structural stress points of the casting.
Heat Treatment for Performance Optimization
Solution annealing is commonly applied to 304/316 grades to enhance corrosion resistance.17-4 PH grades undergo heat treatment schedules ranging from H900 to H1150 to achieve an optimal balance of strength and toughness.
Precision Machining and Quality Inspection
Achieve dimensional accuracy of ±0.05–0.1 mm via CNC finishing + CMM coordinate measurement. Surface roughness reaches Ra 3.2–6.3 µm (depending on casting grade).
Ultrasonic testing, penetrant testing, metallographic examination, hardness testing, etc.,
What are the Advantages of Stainless Steel Castings Parts ?
If you're concerned about whether a design is suitable for casting, we also support preliminary manufacturability assessments and simulation optimization to reduce risks and improve first-pass yield.
Secondary Operations and Treatment of Stainless Steel Casting We Offer
How to Work With us
Provide 3d drawings
Evaluate the quotation
Manufacturing
Order delivery
Get 3-day standard lead times on simple parts between 10 mm x 10 mm and 200 mm x 200 mm. Upload your part to see if it’s eligible.
Frequently asked questions
Drawing evaluation: 1-2 business days
Prototype production: 5-10 business days
Small-batch production: 10-15 business days
Large-scale production: 15-30 business days
Rush service: 72-hour rush service available (additional fees apply)
We have established a comprehensive quality management system:
ISO 9001:2015 Certification: International quality management standard
First Article Inspection: 100% confirmation of the first piece before mass production
Process Control: 100% inspection of critical processes
Finished Product Inspection: Full dimensional inspection using CMM coordinate measuring
Quality Traceability: Complete production and inspection records
We support both small-batch prototyping and large-scale production. MOQ starts from as low as a few dozen pieces, and high-volume orders up to hundreds of thousands are welcome.
Yes. Besides producing according to drawings, we provide DFM (Design for Manufacturability) support to reduce costs and improve efficiency.
Pricing is based on material, process complexity, order volume, and delivery requirements. We aim to offer the most cost-effective solution for every project.
We serve automotive, machinery, electronics, medical devices, and energy sectors. From precision parts to structural components, we have extensive expertise.
