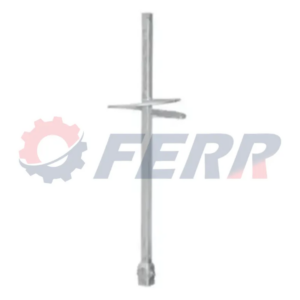

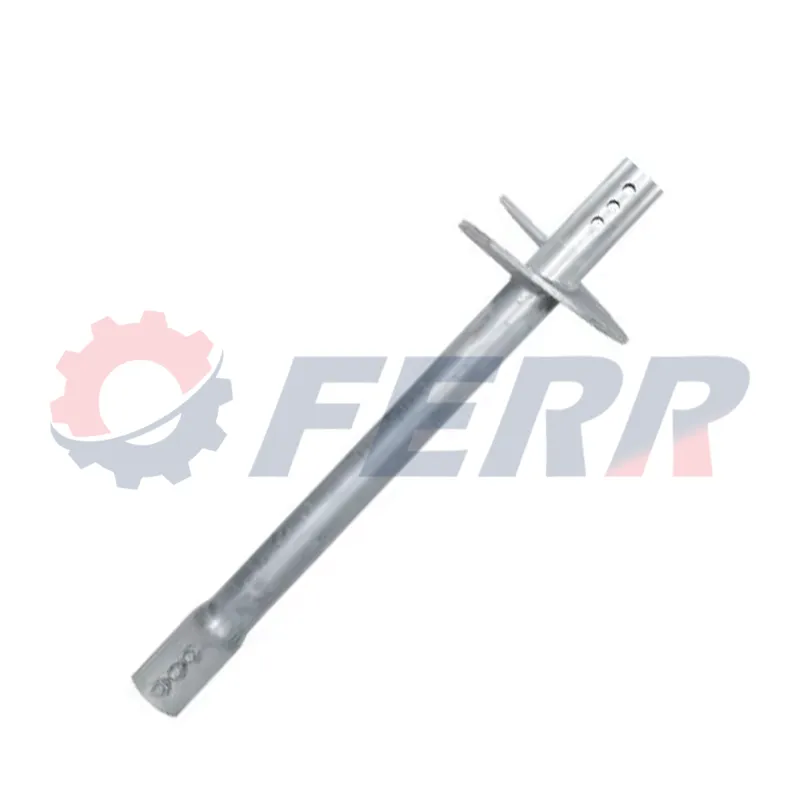

Helical Anchor Extension
Main Product Features
- Round or square shafts with couplers or bolt connectors
- Shaft length: 3 ft to 10 ft
- Match existing shaft and torque specs
- Hot dip galvanized or black oxide options
- Engineered to meet specific site load requirements
OEM/ODM Service
FERR assists you throughout the project: selection of materials suitable for the electrical environment, optimization of mechanical load-bearing structures, corrosion-resistant surface treatments, analysis of interface compatibility, improvement of insulation properties, as well as customized installation dimensions and hardware accessories. We continue to provide you with solutions and assistance.
Large or Small Order
Whether you have a long term project that requires bulk deliveries or a small order with just a few samples, FERR will support you with the same professionalism and responsiveness.
Our flexible production model enables the rapid sampling of multiple categories and small quantities, as well as the stable production of large-scale customized parts. From engineering evaluation and process selection to sampling, quality control, and shipping, our team works efficiently together to ensure consistent and reliable delivery, regardless of the order size.
*Provide your application requirements—such as stress conditions, materials, size range, and even product name. We are always available for customization, so please contact us directly.
Product introduction
Spiral anchor bolt extension is a steel shaft rod installed at the front of the spiral anchor bolt, and its structural form is mainly divided into two types: square shaft extension and round shaft extension. This component has an important function in foundation engineering, especially in complex geological conditions.
The custom earth helical anchor extensions supplied by FERR are designed to increase the depth and torque resistance of existing helical foundation systems. This design is particularly suitable for deep soils or other unstable subgrade environments, and is a key technological tool to ensure the reliability of foundations.
Helical anchor bolt extensions have a wide range of applications in the engineering field. Whether for ground anchoring or foundation fixing, this component can be utilized. Specifically, it can be used in the construction of jetties, the assembly of solar panels, the installation of helical decks, and construction operations in tower foundation work.
As a key component of a helical anchor or helical pile system, the helical anchor extension consists of three main parts: the lead component, the helical anchor extension, and the anchor adapter. The structure of the extension unit itself can be further subdivided into the shaft rod (the core part of the extender), the forged socket coupler, and the anchor attachment point, forming a complete functional unit.
The main function of the helical anchor bolt extensions is to install foundation elements in deeper soils, thus ensuring that the bolts are positioned in a more solid and stable geological layer. Deeper foundations significantly increase their load-bearing capacity and stability.
In addition, the forged socket coupler of the helical anchor bolt extension is bolted to the front of the helical anchor bolt, while the connecting part of the extension is fixed by a special tool. During the construction process, the rotating equipment drives the extension bar deep into the soil, and the constructor can gradually increase the extension bar as needed until the specified torque is reached to ensure optimized installation results and safety performance.
Technical Manufacturing Standards
| MOQ | ≥1 Piece |
| Manufacturing Methods | OEM /ODM(According to Drawings) |
| Type | Screw anchor, Plate anchor, Expanding anchor, Conical anchor, Cast iron anchor, Welded anchor, etc. |
| Diameter of spiral disk | Ø100mm ~ Ø400mm (single/multiple spiral structure can be customized) |
| Anchor Length | 400mm ~ 3000mm (commonly used 1.2m / 1.5m / 2.0m / 2.4m) |
| Anchor diameter | Ø12mm ~ Ø36mm (round / square / solid / hollow structure available) |
| Material | Q235B, Q345B, alloy steel, stainless steel, etc. |
| Surface treatment | hot-dip galvanized, electro-galvanized, oiled to prevent rust, etc., anti-corrosion layer thickness 70μm ~ 120μm |
| Pull-out force | 5kN ~ 120kN (according to the type of installation soil and anchor structure design) |
| Installation method | Manual screw, motorized screw-in, hammering type, drilling + grouting type and other forms of support |
| Application Scenario | Transmission lines, communication tower foundation, agricultural greenhouse, photovoltaic support, slope protection, etc. |
| Design Customization | Yes |
| QA Service | Yes |
| Installation Guidance | Yes |
| Freight Solutions | Yes |
| After Services | Yes |
