Clevis Bolt
Main Product Features
-
Manufactured from heat-treated carbon steel or stainless steel
-
Supplied with lock nuts and cotter pins for secure connection
-
Coated per ASTM A153 standard for field durability
OEM/ODM Service
FERR assists you throughout the project: selection of materials suitable for the electrical environment, optimization of mechanical load-bearing structures, corrosion-resistant surface treatments, analysis of interface compatibility, improvement of insulation properties, as well as customized installation dimensions and hardware accessories. We continue to provide you with solutions and assistance.
Large or Small Order
Whether you have a long term project that requires bulk deliveries or a small order with just a few samples, FERR will support you with the same professionalism and responsiveness.
Our flexible production model enables the rapid sampling of multiple categories and small quantities, as well as the stable production of large-scale customized parts. From engineering evaluation and process selection to sampling, quality control, and shipping, our team works efficiently together to ensure consistent and reliable delivery, regardless of the order size.
*Provide your application requirements—such as stress conditions, materials, size range, and even product name. We are always available for customization, so please contact us directly.
Product introduction
A clevis bolt is a specialized component commonly used in tie rod assemblies to establish dead-end connections with eyes or links. It serves as a versatile fastener, enabling a mechanical link between parts requiring secure attachment without impeding their movement.
FERR Clevis Bolts stand out as high-strength fasteners designed for connecting clevis fittings to poles or structures. Crafted with precision machining and tight tolerances, these bolts ensure proper alignment and mechanical stability under dynamic loads, making them reliable for demanding applications.
In assemblies, a clevis bolt creates a robust connection that allows movement along a single axis. This unique feature makes them particularly suitable for systems requiring a pivot point, such as suspension systems, mechanical linkages, and various equipment assemblies.

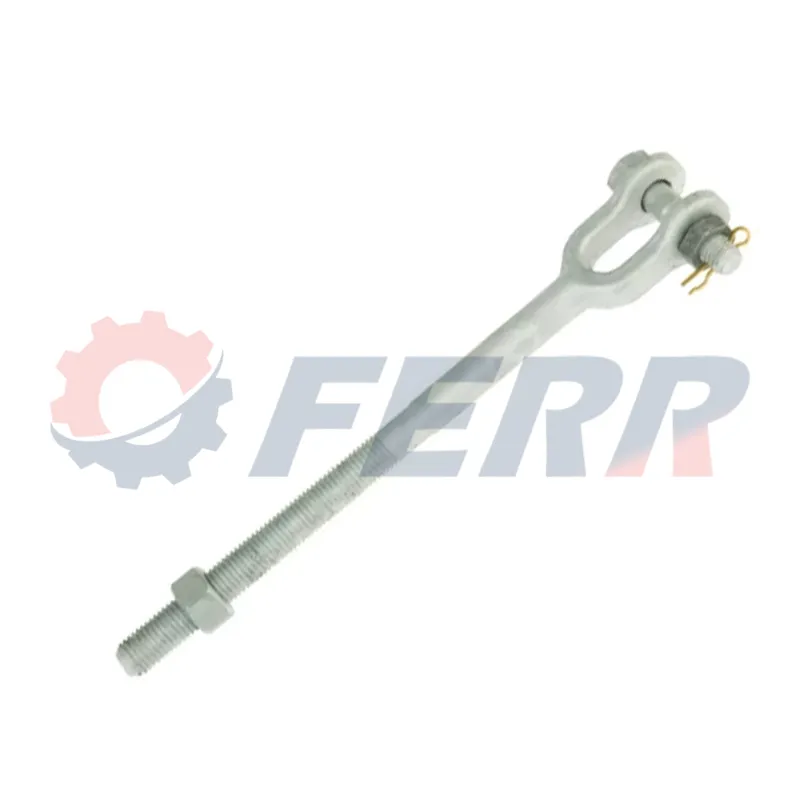

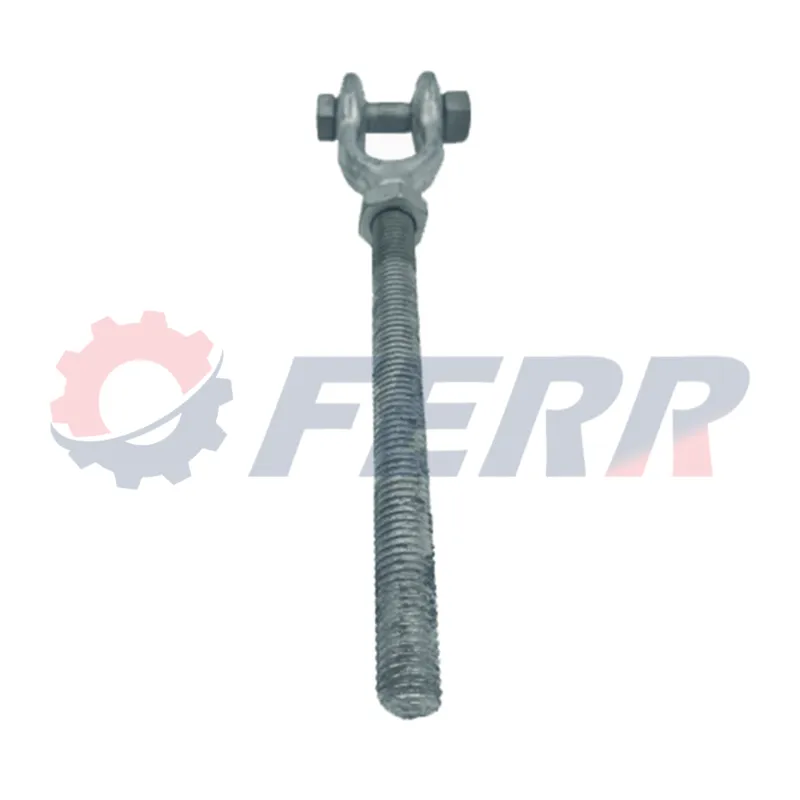

The design of the clevis is characterized by a U-shaped head at one end, equipped with holes for attachment. The opposite end is a machine bolt featuring a nut and a stainless steel self-locking cotter pin, ensuring a vibration-resistant and secure assembly. The nut’s diameter can vary depending on specific application requirements.
These bolts are widely used for attaching suspension insulators or in dead-end setups, such as securing conductors and guy wires. The practical design of the clevis allows for straightforward installation—simply threading it into linked components achieves a dependable and durable connection.
Technical Manufacturing Standards
| MOQ | ≥1 Piece |
| Manufacturing Methods | OEM /ODM(According to Drawings) |

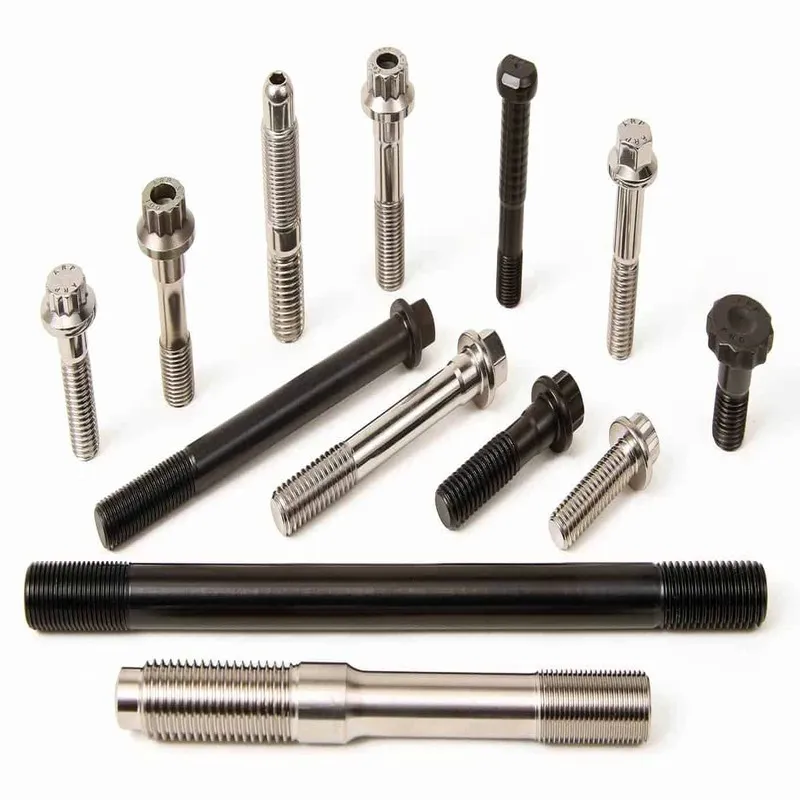

| Types | U-bolts, T-bolts, double-headed studs, heavy-duty flat washers, square nuts, specialty screws |
| Size | M6 ~ M64 (Metric), 1/4“ ~ 2.5” (Imperial) |
| Length Range | 10mm ~ 1500mm |
| Precision grade | Tolerance grade ISO 8g/6g, DIN 931/933, GB/T 5783, etc. |
| Material | Grade 8.8 carbon steel, stainless steel 304/316, alloy steel, nickel-based alloy |
| Surface treatment | black oxidized, Dacromet, hot-dipped zinc, electro-galvanized, nickel-plated, phosphated. |
| Application areas | power transmission, bridges, wind power, rail transportation, equipment assembly and other special working conditions. |
| QA Service | Yes |
| Installation Guidance | Yes |
| Freight Solutions | Yes |
| After Services | Yes |
Why choose FERR's
Clevis Bolt
At FERR, we not only supply industry-standard components but also provide tailored solutions to meet your project requirements. Leveraging our proprietary raw material supply and efficient manufacturing system, we help clients reduce potential risks and hidden costs while ensuring quality and timely delivery.
Every product embodies our OEM/ODM expertise, from material selection to structural design, guaranteeing long-lasting durability.
No Drawings? No Problem.
*With 25 years of experience, we help manufacturers worldwide turn “standard problems” into custom solutions.
sketch design stage
You only need to provide a sample or basic dimensions — our engineers will handle the rest. We turn your ideas into precise technical drawings based on a deep understanding of your actual needs, ensurinYou don’t need to prepare a full 3D model or detailed drawing.
3D modeling and production stage
We build high-precision 3D models based on the initial design, verifying every detail with professional software to meet production standards. Once approved, we move straight into precision manufacturing.
Testimonials
FERR always puts the interests of its customers first.
Yunex
Distribution network project contractors in Southeast Asia
I was most afraid of the drawings sent over to the docking is not clear, the results of FERR engineers directly with me to dock the technical details, and even the bolt hole spacing are confirmed to be very fine. Proofing out once through, no rework, too much trouble.
Orlando J.
Equipment distributors in Europe
Our customers are very picky, especially about the thickness and appearance of the hot-dip galvanized layer, and the goods sent by FERR not only meet the standard, but also the key is that each batch is very stable, and we have never had any problems with the secondary inspection.
Lambrinie
Procurement Manager, X Power Engineering, USA
We started out with just a couple samples to try, and they turned out to be so much better than what we were using before. The dimensional accuracy, surface finish are all spot on and the delivery was fast. Now every time I have a project I go to FERR first, with confidence.
Marco Martinez
Project Manager in the Middle East
I've used quite a few suppliers, some quotes are cheap but with lots of problems.FERR is not the cheapest but they are really the most hassle free. Design coordination, delivery time, packaging details can think ahead of me, I save a lot of energy.
Do you accept small orders?
Absolutely. Our minimum order quantity is 1 piece. You can order a small amount to feel the high quality of our products!
How long is your product warranty?
We offer a 2 years warranty on all our products
What’s your typical lead time?
Lead time depends on part complexity and order volume. For most prototypes or low-volume runs, we offer lead times as fast as 5–7 working days. Rush orders can often be accommodated.
Can I request a sample?
Yes. For Electric Power Fitting, we can provide first article samples upon request. Whether it’s sheet metal, CNC-machined, or assembled parts, we offer sample production to help you evaluate form, fit, and function before moving into full production.
What if the size does not match at the installation site?
We support customized service, in case of size inconsistency, you can contact your account manager at the first time. We will assist in confirming the cause of the problem and provide solutions such as modifying drawings, re-processing or replacing parts to ensure smooth installation of the product and reduce your time and cost loss.
How do you solve the problem of high mold cost and long delivery time?
We provide a variety of low-cost, fast delivery solutions, fusion molding, sand casting, disappearing mold, aluminum mold fast mold, mold sharing mechanism, as well as long-term cooperation mechanism with mold factories, to ensure that the opening of the mold is fast, save money, and do not affect the quality. For trial orders and small batch orders, we also offer flexible development programs to minimize the risk of upfront investment for our customers.
Do you provide type test reports or third-party certifications (e.g., IEC, ANSI)?
Yes. We can provide type test reports and third-party certifications upon request, especially for projects requiring compliance with IEC, IEEE, or national grid standards.
