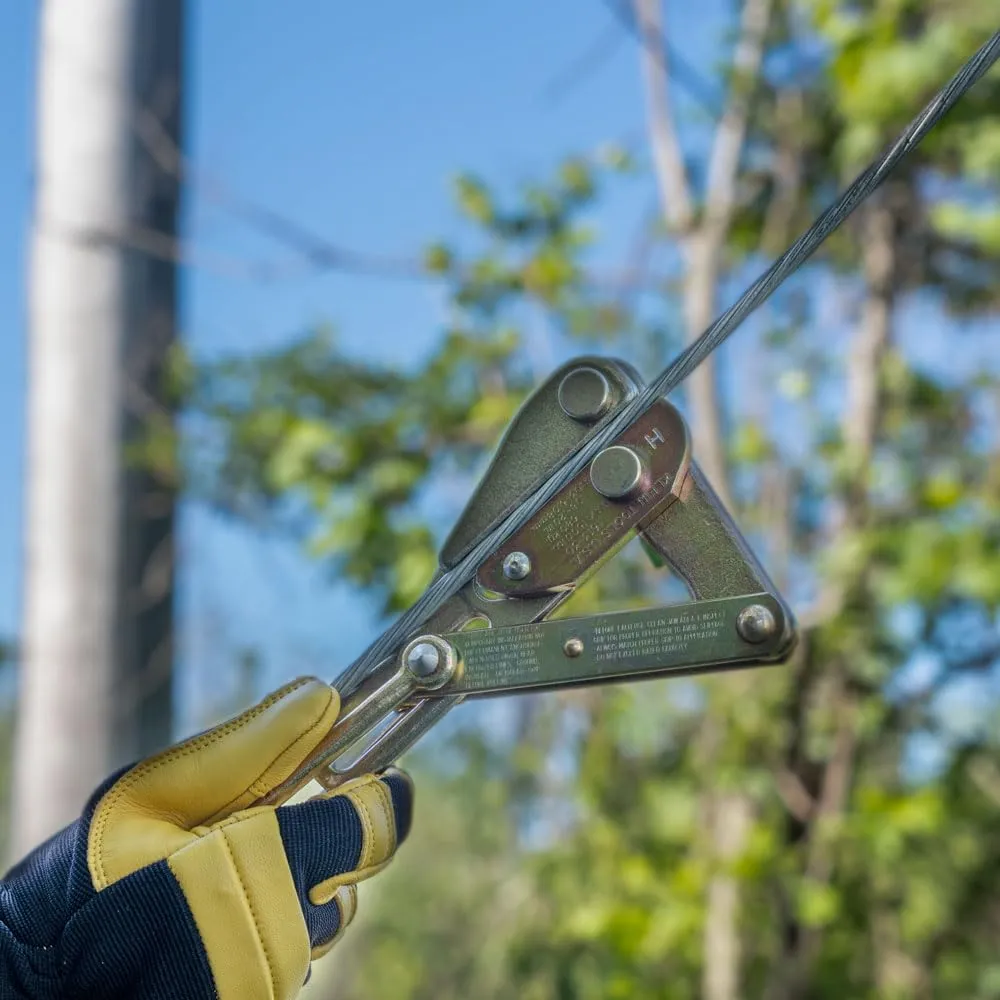

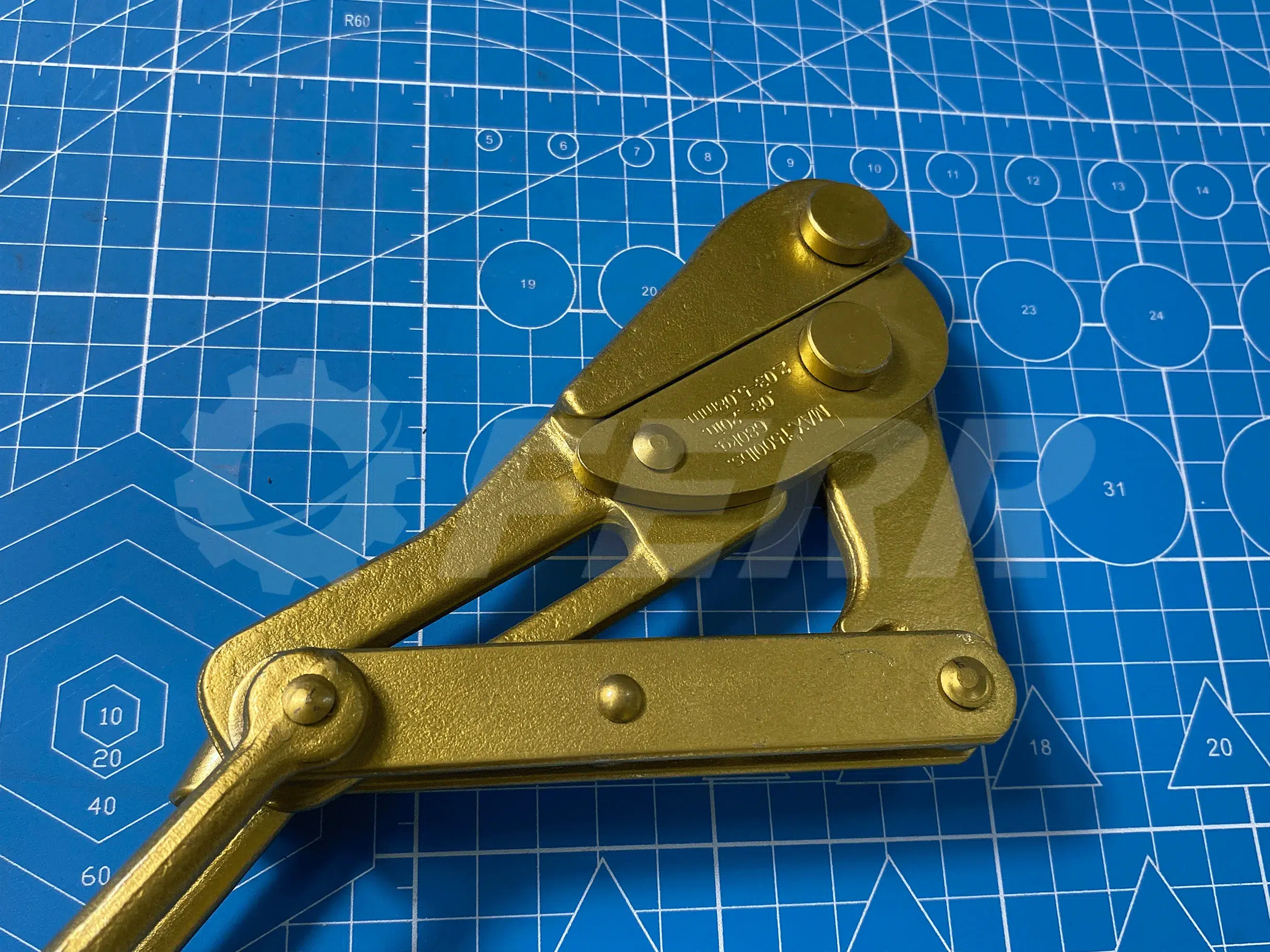

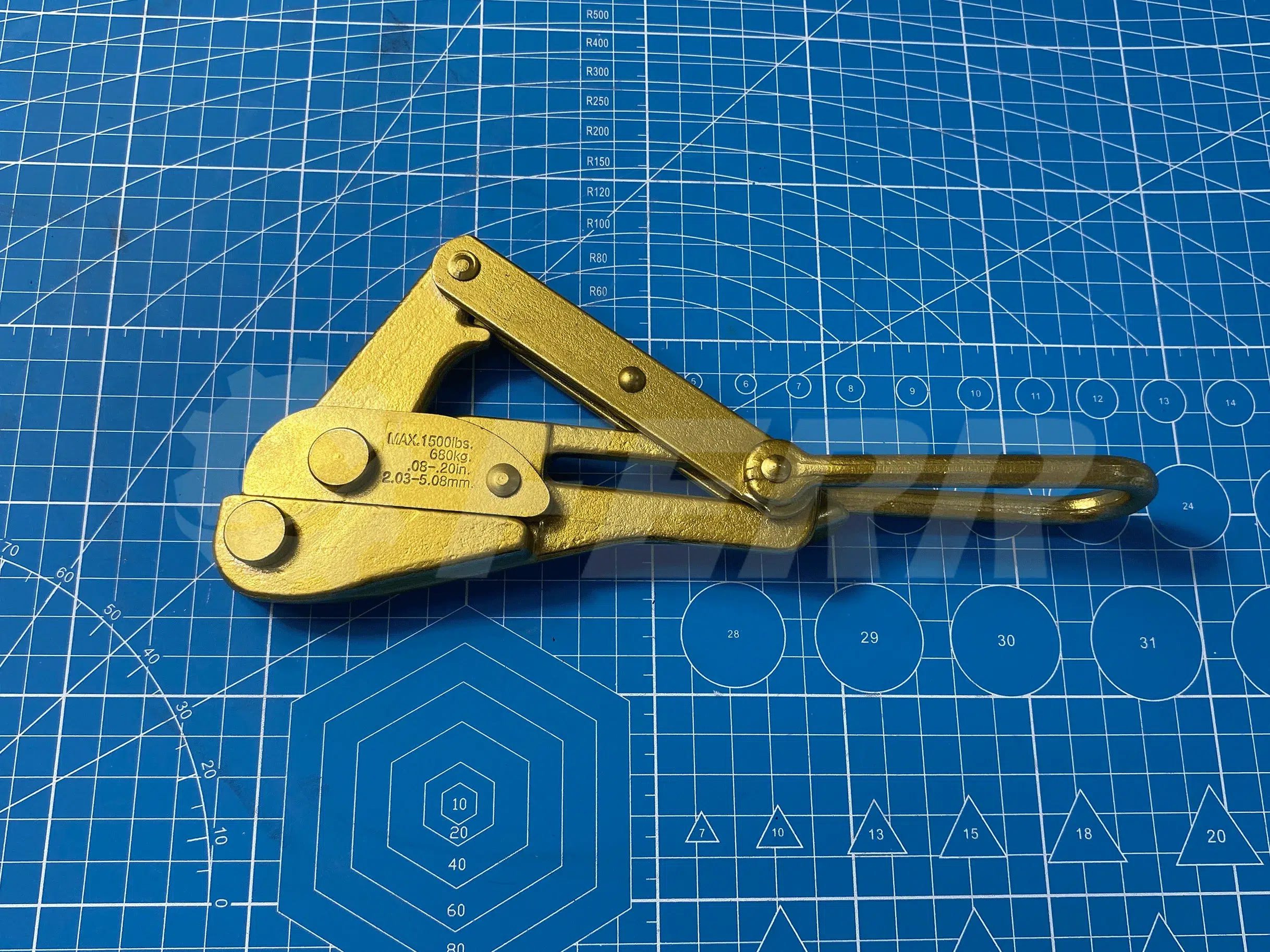

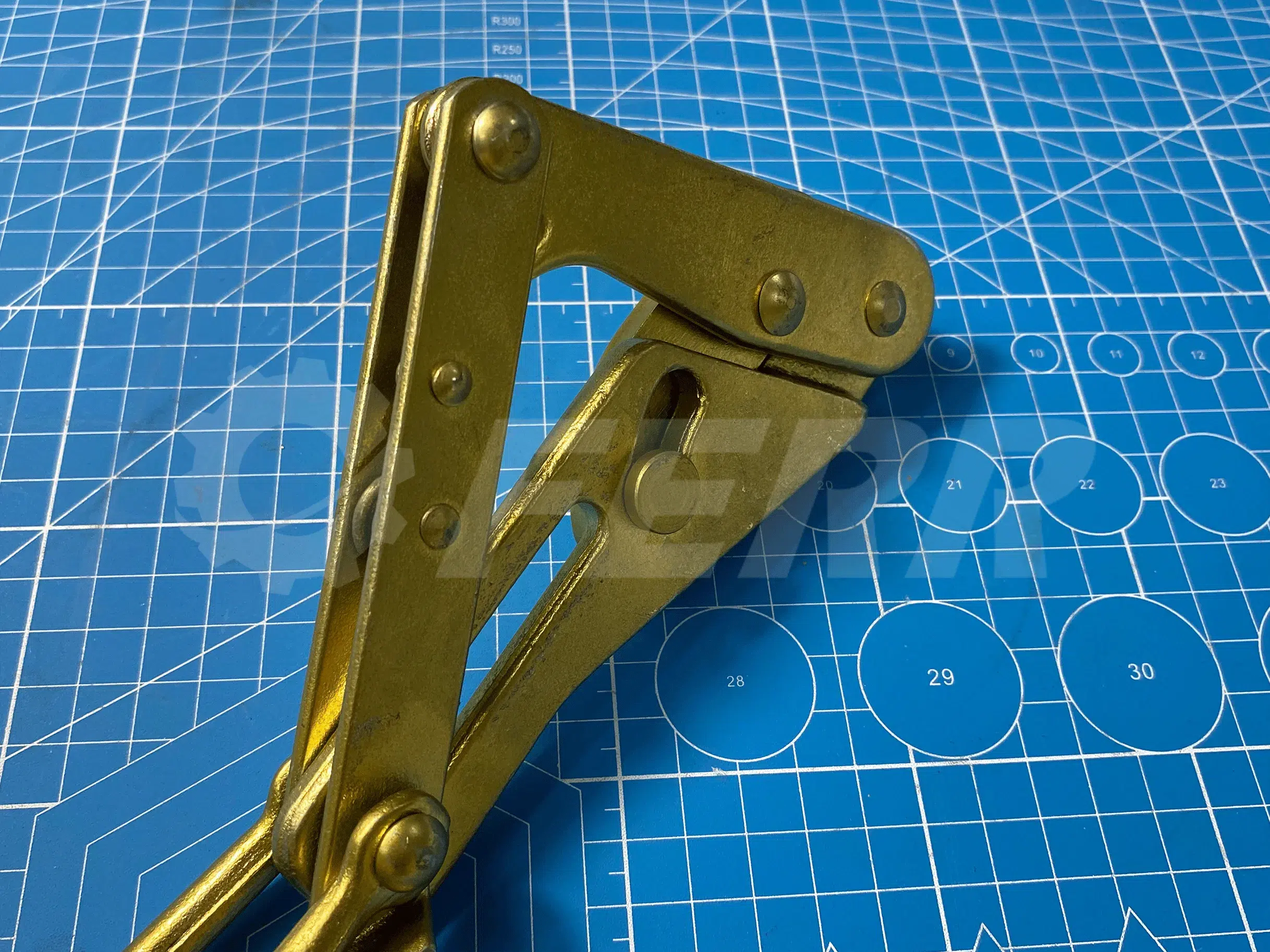

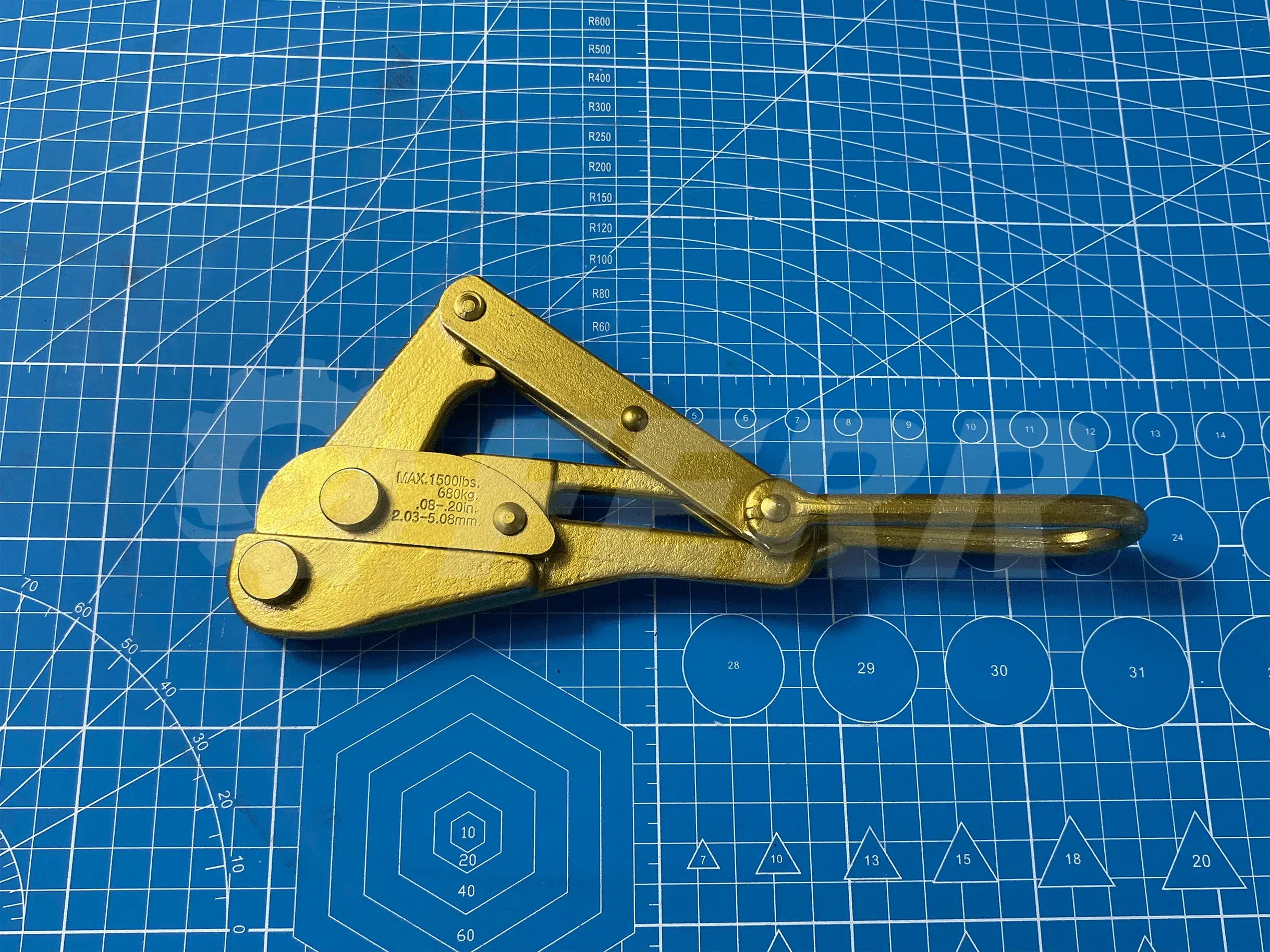

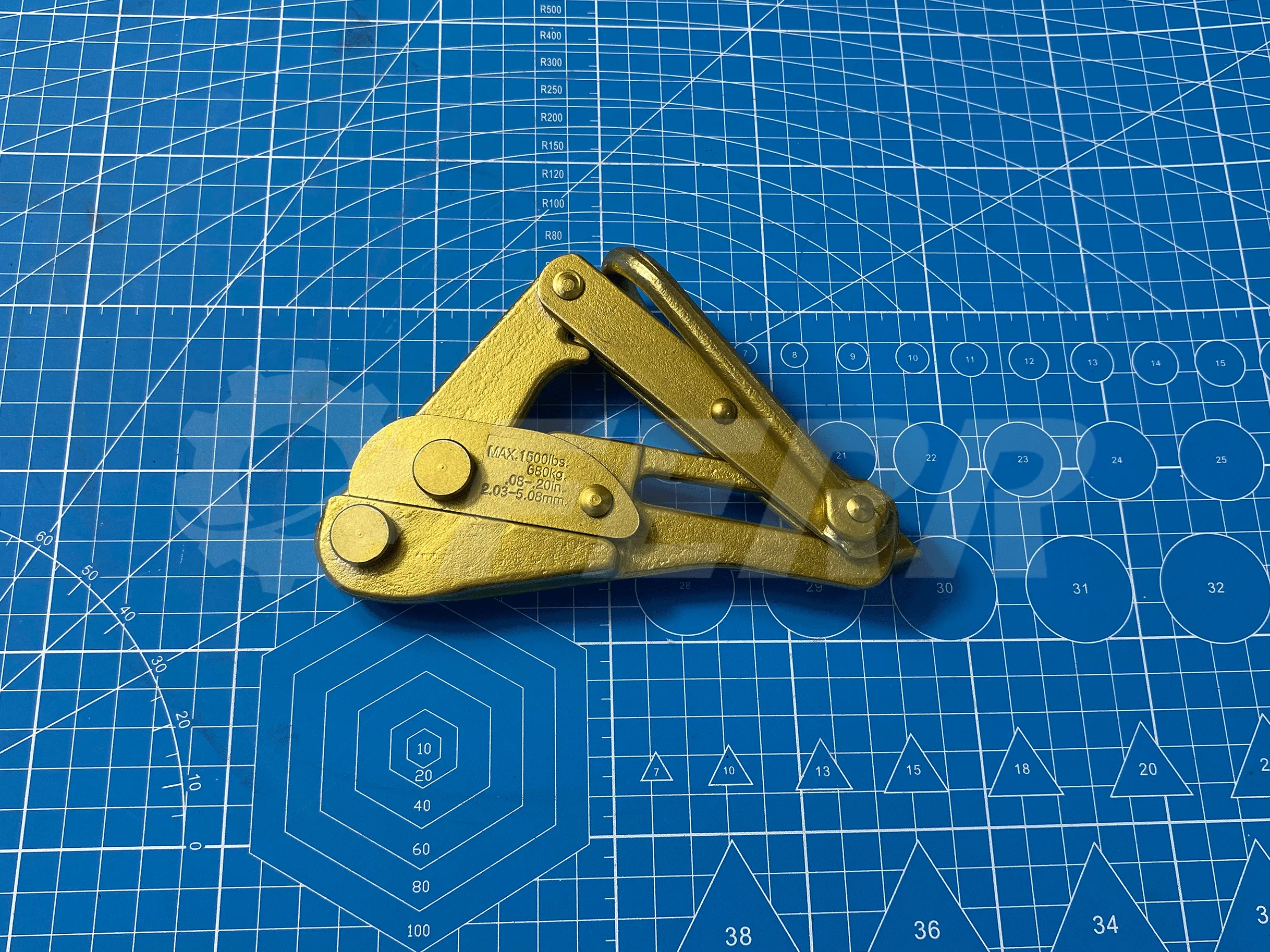

Grip for Bare Wire
Enquire Now*Provide your application requirements—such as stress conditions, materials, size range, and even product name. We are always available for customization, so please contact us directly.
Introduction
1.Engineered as a lightweight and economical gripping solution for both solid and stranded bare copper conductors ranging from #8 AWG to #6 AWG.
2.Designed to operate within a cable diameter range of 0.08 to 0.20 in (2.0 to 5.1 mm).
3.Equipped with a single V-groove jaw featuring a 3-inch jaw length for consistent and secure gripping.

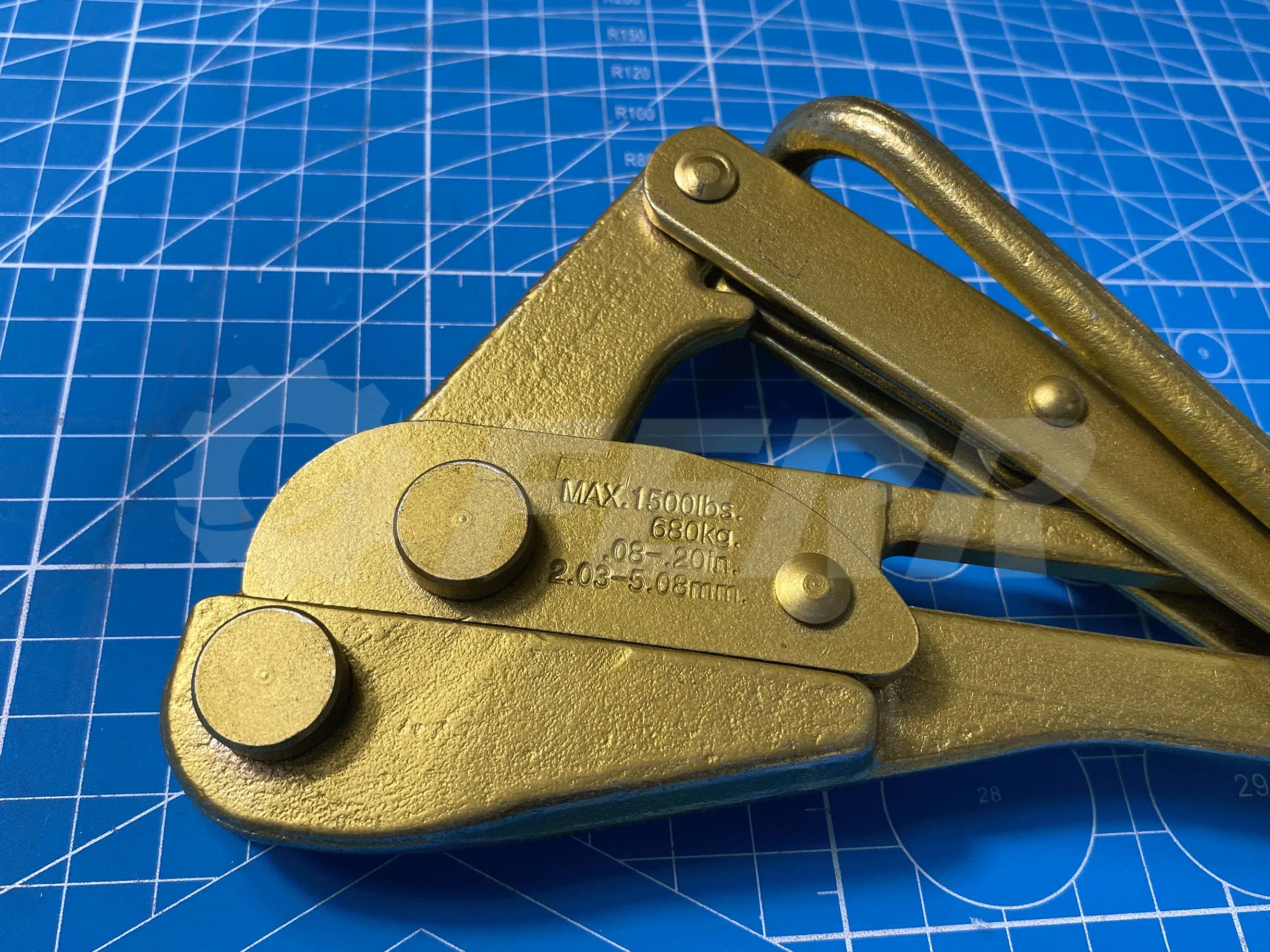

4.Rated for a maximum safe working load of 1,500 lb (680 kg).
Specifications
Type: Grip Application: Wire Pulling Material: Steel Cable Type: Copper, ACSR, Steel Strand Cable Diameter: 0.08” to 0.2” (2.03 to 5.08 mm) Jaw Length: 3” (7.6 cm) Maximum Safe Load: 1500 lb (680 kg) Weight: 1.5 lb (0.7 kg) Product Name Grip for Bare Wire Material Carbon steel, alloy steel, cold/hot-forged shell steel, stainless steel, heat-resistant steel, and other high-alloy steel components Product Dimensions Provided according to customer-specified drawings Color As per customer requirements Molds Designed and manufactured in-house Surface Treatment Trimming, deburring, polishing, shot blasting, sandblasting, tumbling, powder coating, anodizing, passivation, chemical coating, painting, electroplating, electrophoresis, etc.
